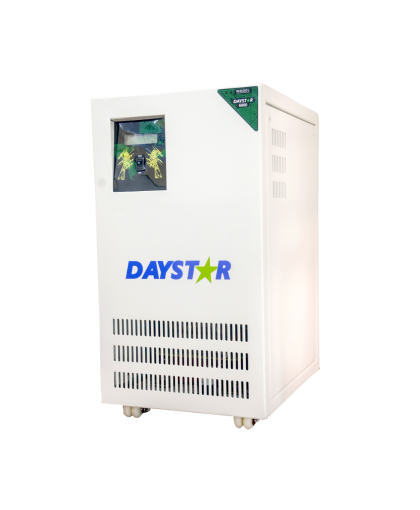

Daystar 10KVA 120V Inverter
₦1,500,000.00
The Elson 2.5KVA/48V Pure Sine Wave Inverter is a smart solution for uninterrupted power supply which ensures prolonged power supply in your home and office. Providing smooth switch-overs, with no black outs.
The Daystar 10KVA/120V Pure Sine Wave Inverter is a smart solution for uninterrupted power supply which ensures prolonged power supply in your home and office. Providing smooth switch-overs, with no black outs. It features a high-efficiency LCD display provide all info what you want to know I/P & O/P voltage, , Load % and much more. It has an overload protection which ensures maximum efficiency of all appliances against load shedding. Longer backup of electronic devices like computers and laptops is guaranteed with the Elson 10KVA Inverter. For uninterrupted power supply in your home and office, make use of the Elson Inverter. It is well-designed and has been built to deliver stable voltage to your electrical devices.
| DESCRIPTION | TECHNICAL SPECIFICATION |
| CAPACITY | 10KVA |
| WAVE | PURE SINE WAVE |
| BACK-UP MODE | |
| NOMINAL BATTERY VOLTAGE | 120V |
| OUTPUT POWER FACTOR | 0.8 |
| NO LOAD O/P VOLTAGE | 220V±5V AC |
| O/P FREQUENCY | 50Hz ± 1Hz |
| MAXIMUM NO LOAD BATTERY | 1.1A ± 0.2A |
| FULL LOAD O/P CURRENT | 8.7A±0.5A |
| TOTAL HARMONIC DISTORTION | 3% |
| LOW BATTERY INDICATION | 10.5V +/-0.2DC PER BATTERY(12V DC EACH) |
| LOW BATTERY CUT OFF | 10.3+/-0.2VDC PER BATTERY (12V DC EACH) |
| MAINS MODE | |
| MAX. CHARGING CURRENT(while battery is full) | 10A ± 2A |
| FULL LOAD O/P CURRENT @ MAINS MODE | 15A ± 1A |
| BOOST CHARGING VOLTAGE | 14.2V ±0.2V DC PER BATTERY (12V DC EACH) |
| FLOAT CHARGING VOLTAGE | 13.7V ± 0.2V DC PER BATTERY (12V DC EACH) |
| NORMAL MODE | |
| INPUT VOLTAGE RANGE | 130V TO 280V AC ± 5V AC |
| CHANGE OVER TIME (MAINS TO INVERTER) | 30Ms |
| CHANGE OVER TIME (INVERTER TO MAINS) | 25Ms |
| UPS MODE | |
| INPUT VOLTAGE RANGE
OUTPUT VOLTAGE RANGE BATTERY CHARGING VOLTAGE RANGE |
180V TO 260V AC ± 5V AC
23OVAC ± 10VAC
130V TO 142V |
| CHANGE OVER TIME (MAINS TO INVERTER) | 10Ms |
| CHANGE OVER TIME (INVERTER TO MAINS) | 10Ms± |
| PROTECTIONS | |
| PROTECTIONS | OUTPUT NOT OK, BATTERY VOLTAGE LOW(4 AUTO RETRIES), BATTERY OVER CHARGE, OVER TEMPERATURE, SHORT CIRCUIT, MAINS MCB TRIPPED |
| DISPLAYS | |
| DISPLAYS | WELCOME MESSAGE, CAPACITY,OUTPUT VOLTAGE, OUTPUT FREQUENCY, LOAD PERCENTAGE, INPUT VOLTAGE AND FREQUENCY, BATTERY CHARGING, BATTERY VOLTAGE, ALL PROTECTION |
| ENVIRONMENTAL PARAMETERS | |
| OPERATING TEMPERATURE | 0 – 45 Deg |
| ACOUSTIC NOISE AT 1 MTR. | <45dB |
| RELATIVE HUMIDITY | MAX. 95% NON-CONDENSING |
| THERMAL MANAGEMENT | INTEGRATED COOLING (FAN & HEAT SINK) |
| WEIGHT AND DIMENSIONS | |
| WITH PACKAGING (L*W*H) IN MM | 485*410*610 |
| WITHOUT PACKAGING (L*W*H) IN MM | 320*225*400 |
| NET WEIGHT | 27KG |
| GROSS WEIGHT | 35KG |
